  #91
Old 01-31-2017, 07:57 AM
BillL BillL is offline

Join Date: Sep 2007
Location: Central IL
Posts: 5,516
Default

Ross, thanks for that top picture. That answers my a nagging question on how to direct airflow into the cylinders. I have been stalled on that area between the cylinders.

WOOO HOOOO! A solution found!! (copied)

Another question. It appears Dave has directed his oil cooler air downward, but it seems to dump behind his exit fence, is that correct? Or is there something we don't see?
__________________
Bill

RV-7
Lord Kelvin:
“I often say that when you can measure what you are speaking about,
and express it in numbers, you know something about it; but when you
cannot measure it, when you cannot express it in numbers, your knowledge
is of a meager and unsatisfactory kind.”
Reply With Quote
  #92
Old 01-31-2017, 08:13 AM
rv6ejguy's Avatar
rv6ejguy rv6ejguy is offline

Join Date: Mar 2005
Location: Calgary, Canada
Posts: 5,766
Default

Quote:
Originally Posted by BillL View Post

It appears Dave has directed his oil cooler air downward, but it seems to dump behind his exit fence, is that correct? Or is there something we don't see?
There's a photo on page 2 of this thread which shows his oil cooler duct.
__________________

Ross Farnham, Calgary, Alberta
Turbo Subaru EJ22, SDS EFI, Marcotte M-300, IVO, Shorai- RV6A C-GVZX flying from CYBW since 2003- 441.0 hrs. on the Hobbs,
RV10 95% built- Sold 2016
http://www.sdsefi.com/aircraft.html
http://sdsefi.com/cpi2.htm


Reply With Quote
  #93
Old 01-31-2017, 09:33 AM
DanH's Avatar
DanH DanH is offline

Join Date: Oct 2005
Location: 08A
Posts: 9,500
Default

Quote:
Originally Posted by BillL View Post
Ross, thanks for that top picture. That answers my a nagging question on how to direct airflow into the cylinders. I have been stalled on that area between the cylinders.
Interesting. Dave is extending silicone wrap well past the 9 and 3 positions on some cylinders. The red wraps on the head fins between 1/3 and 2/4 probably do not extend down into the gap, as passage area is shared there. Inboard, I wonder if there is any wrap on the steel fins, under the baffle plates?

Bill, check the top view profile of the inlet floors.

Quote:
Another question. It appears Dave has directed his oil cooler air downward, but it seems to dump behind his exit fence, is that correct? Or is there something we don't see?
Drop a note. I'll bet he would send a photo if you ask.
__________________
Dan Horton
RV-8 SS
Barrett IO-390
Reply With Quote
  #94
Old 01-31-2017, 11:25 AM
BillL BillL is offline

Join Date: Sep 2007
Location: Central IL
Posts: 5,516
Default

Quote:
Originally Posted by rv6ejguy View Post

Ross, I have seen this picture, but it looks like the oil cooler air discharge is behind/below the exit guide fence. Following Daves work over the years I don't challenge the results, just wanted to make sure I was interpreting the photo correctly. If so, it does not make much difference undercowl to do it that way. I wanted to get my cooler discharge off of the half-raven catch tank and directed downward, but was puzzled as to how to get it directed back in the exit stream, if that was even a factor.

PS - DanH directs his cooler discharge air to the exit, but that is due to his higher lower cowl pressure with the cowl flap.
__________________
Bill

RV-7
Lord Kelvin:
“I often say that when you can measure what you are speaking about,
and express it in numbers, you know something about it; but when you
cannot measure it, when you cannot express it in numbers, your knowledge
is of a meager and unsatisfactory kind.”

Last edited by BillL : 01-31-2017 at 11:30 AM.
Reply With Quote
  #95
Old 02-03-2017, 08:05 AM
rv6ejguy's Avatar
rv6ejguy rv6ejguy is offline

Join Date: Mar 2005
Location: Calgary, Canada
Posts: 5,766
Default

Dave has his new injectors installed but will be not be able to fly for some time as the weather has clamped in for a while.

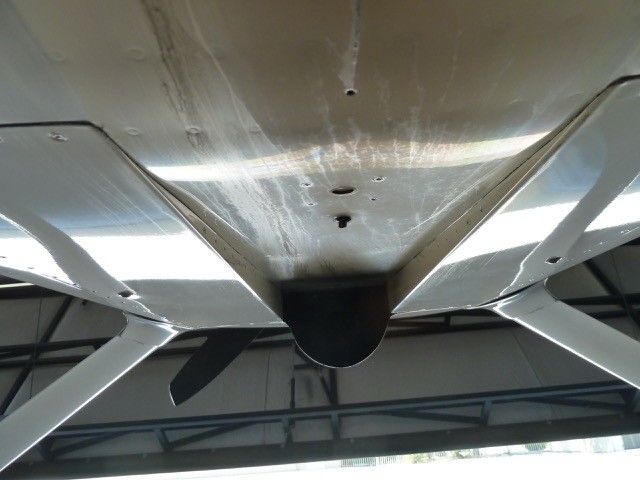

In the meantime, he sent some more photos of his cowling ducting arrangement. His usual, very nice work:



__________________

Ross Farnham, Calgary, Alberta
Turbo Subaru EJ22, SDS EFI, Marcotte M-300, IVO, Shorai- RV6A C-GVZX flying from CYBW since 2003- 441.0 hrs. on the Hobbs,
RV10 95% built- Sold 2016
http://www.sdsefi.com/aircraft.html
http://sdsefi.com/cpi2.htm


Reply With Quote
  #96
Old 02-03-2017, 08:58 AM
Chkaharyer99 Chkaharyer99 is offline

Join Date: Oct 2011
Location: Pilot Hill, CA
Posts: 845
Default

The March 2017 issue of Kitplanes features an outstanding article by Dave Andrers, "Putting the Experiment in Experimental".

A portion of the article is dedicated to his use of the SDS EFI and Light Speed Plasma EI on his RV-4. Articles like this help me better understand the advantages of these more sophisticated systems and how they improve performance and economy.

It would be interesting to hear more about his electrical system. I don't see an alternator in any of the photographs. Maybe there's one on the back of the engine accessory case.

Back to spectating and learning.
__________________
Charlie
RV-8
Reply With Quote
  #97
Old 02-03-2017, 11:19 AM
Ironflight's Avatar
Ironflight Ironflight is offline
VAF Moderator / Line Boy

Join Date: Jan 2005
Location: Dayton, NV
Posts: 12,256
Default

Quote:
Originally Posted by Chkaharyer99 View Post
The March 2017 issue of Kitplanes features an outstanding article by Dave Andrers, "Putting the Experiment in Experimental".

A portion of the article is dedicated to his use of the SDS EFI and Light Speed Plasma EI on his RV-4. Articles like this help me better understand the advantages of these more sophisticated systems and how they improve performance and economy.

It would be interesting to hear more about his electrical system. I don't see an alternator in any of the photographs. Maybe there's one on the back of the engine accessory case.

Back to spectating and learning.
You'll be seeing more detail on Dave's work in KP in the coming year as well....but this weather (that Ross mentioned) has to clear up across the Sierra so I can make the 30 minute flight to go shoot some pictures!
__________________
Paul F. Dye
Editor at Large - KITPLANES Magazine
RV-8 - N188PD - "Valkyrie"
RV-6 (By Marriage) - N164MS - "Mikey"
RV-3B - N13PL - "Tsamsiyu"
A&P, EAA Tech Counselor/Flight Advisor
Dayton Valley Airpark (A34)
http://Ironflight.com
Reply With Quote
  #98
Old 02-03-2017, 12:08 PM
BillL BillL is offline

Join Date: Sep 2007
Location: Central IL
Posts: 5,516
Default

Quote:
Originally Posted by rv6ejguy View Post
In the meantime, he sent some more photos of his cowling ducting arrangement. His usual, very nice work:
Thanks, Ross, that makes perfect sense now for that oil cooler effluent integration.
__________________
Bill

RV-7
Lord Kelvin:
“I often say that when you can measure what you are speaking about,
and express it in numbers, you know something about it; but when you
cannot measure it, when you cannot express it in numbers, your knowledge
is of a meager and unsatisfactory kind.”

Last edited by BillL : 02-03-2017 at 02:11 PM.
Reply With Quote
  #99
Old 02-14-2017, 07:31 AM
rv6ejguy's Avatar
rv6ejguy rv6ejguy is offline

Join Date: Mar 2005
Location: Calgary, Canada
Posts: 5,766
Default Running New Injectors

Dave has started testing with the new top mount injectors. Here is his update:


"...I?ve had enough good weather to start dialing in the RPMFUEL values. It started and idled just as before. It seems to start perhaps a little easier if that?s possible...about 1-11/2 blades, so maybe 1/2 a blade sooner. Sometimes it starts before a full blade. It idles even slower. It will continue to run at 300 rpm where it shakes a lot because of the interaction of each cylinder firing and the weight of the constant speed prop. It runs very smooth at 600+/- rpm.

The guys on my taxiway came out and couldn't believe how smooth it sounds, and the guy across the rwy who was watching called and asked if i had put a muffler on it, it was so quiet and smooth.

When my ECU was updated, the MAP indication now is within 0.2? or less at times then the Dynon and exactly the same as Plasma III at times, otherwise within 0.1?. Thank you.

I?m getting closer to a good RPM FUEL map . I did get cruise temps for the #1 & #3 cylinders. At 20? and 2300 rpm and OAT of 59 F the injectors were 71 & 84 degrees F respectively. I will get climb and after shut down temps in the future. My fuel pressure runs the following under these conditions: STATIC is 42 psi.

RPM 600 2800
FUEL PRES 30.5 42.5
MAP 5.7? 29.40?

The duty cycle appears to be about 74% at WOT.
My fuel flow numbers seem be way off. Is there a different Dynon value for these injectors? (yes- Ross)

When I have it dialed in, I?ll do some comparisons for fuel economy and max speed."
__________________

Ross Farnham, Calgary, Alberta
Turbo Subaru EJ22, SDS EFI, Marcotte M-300, IVO, Shorai- RV6A C-GVZX flying from CYBW since 2003- 441.0 hrs. on the Hobbs,
RV10 95% built- Sold 2016
http://www.sdsefi.com/aircraft.html
http://sdsefi.com/cpi2.htm


Reply With Quote
  #100
Old 03-01-2017, 07:16 AM
rv6ejguy's Avatar
rv6ejguy rv6ejguy is offline

Join Date: Mar 2005
Location: Calgary, Canada
Posts: 5,766
Default

Dave has been able to do only a little testing lately due to the poor weather around his base but here's an update from yesterday.

"We have a few good days before they say we get more rain.
Testing is going great. I should have some good info in a few days. I downloaded version 5.5 and did a run up to get the maps data. It worked great."



Here's a screenshot of the PC data logging program showing Dave's current values as he's working on them.

... "I haven?t had time to analyze today's flight but I?m certain the MAP values from about 13.3 down are way too rich which was evident from gauge 3 mode during idling around and during run up... The zeros in the MAP table have eliminated the popping and everything else is working great...

It starts literally before the end of the first blade at times. No hard starts anymore. It just fires up and idles. What a great system. So far I see no reason for anyone to have to use the induction tube position. Should have some max climb, max speed and economy numbers soon if the weather holds."
__________________

Ross Farnham, Calgary, Alberta
Turbo Subaru EJ22, SDS EFI, Marcotte M-300, IVO, Shorai- RV6A C-GVZX flying from CYBW since 2003- 441.0 hrs. on the Hobbs,
RV10 95% built- Sold 2016
http://www.sdsefi.com/aircraft.html
http://sdsefi.com/cpi2.htm


Reply With Quote
