Default Garmin G3X Touch - GMU 22 mounting

I am looking to put a G3X Touch in an RV-8A I am planning to build now. The installation manual shows a mounting bracket for 7 and 9, but nothing for the 8. There are a lot of restrictions on where the Magnatometer can go per the manual. Has anyone been down this road and knows the solution?

Thanks,

John
Reply With Quote
  #2
Old 04-23-2015, 10:36 PM
rockwoodrv9 rockwoodrv9 is offline

Join Date: Dec 2011
Location: Meridian ID, Aspen CO, Okemos MI
Posts: 2,645
Default

John, the manual shows it in the rear deck For the 7-9 models. That is what I did. I remember seeing one mounted on a small shelf bracket just in front of the deck at the top of the fuselage. That may even be a better location than on the deck.
__________________
rockwoodrv9a
Williamston MI
O-320 D2A
Awaiting DAR Inspection
Reply With Quote
  #3
Old 04-23-2015, 10:52 PM
johninjax johninjax is offline

Join Date: Apr 2015
Location: Jacksonville
Posts: 4
Default

The manual makes it sound almost impossible to meet all the requirements. So, you didn't have any trouble then?
Reply With Quote
  #4
Old 04-24-2015, 03:10 AM
Steve Ashby's Avatar
Steve Ashby Steve Ashby is offline

Join Date: Jul 2006
Location: Stone Mountain, Georgia
Posts: 483
Default On a shelf in the rear fuse, forward of the horiz. stab.

Mark Navratil, who built a stunning classic 8A, engineered a small shelf under the turtle deck just forward of the station where the horizontal stabilizer attaches to the fuselage. He told me that his works fine there. He was kind enough to send me drawings and photos.

I am attending SNF, but when I return home, I will try to dig up the photos and drawings for you. In the alternative, you could PM him. He is a great guy.
__________________
Steve Ashby
Stone Mountain, GA
N184RW (reserved)
RV-8A
YIO-360 180 hp Lycoming
Hartzell Blended Airfoil Prop
Engine Hung
Reply With Quote
  #5
Old 04-24-2015, 05:28 AM
humptybump humptybump is offline

Join Date: Feb 2011
Location: USA
Posts: 3,179
Default

My GMU22 is on a shelf I added just aft of the rear baggage compartment. It met the test specifications there.

It is perhaps a bit close (according to documentation) to the pitch servo which is below and slightly forward of the GMU but it does pass the various tests.

Note: I do not have the aft battery setup that is common for those dealing with CG from heavy noses.
Reply With Quote
  #6
Old 04-24-2015, 07:54 AM
Robert Anglin Robert Anglin is offline

Join Date: Mar 2008
Location: houston, texas
Posts: 900
Default Yep.

Yes we just did this a couple of weeks ago, getting ready for a full Garmin system install. We found that it was not that hard to put it out on the wing-tip rib, just like Garmin spoke to in the installation manual. We made a small bracket out of two flat plats and a run of 3/4" angle. I think we used .050 plate and .063 angle. We just cut the plates to size about 3/4" to 1" wider than the GMU and the one that mounted to the outside of the tip-rib was cut to fit a spot midway between the spar and the trailing edge of the wing body. Put the aircraft in the level plane and rivet it all together with number 4's along with two knee braces or "struts" if you like and you are done.
Yes I know it did take all of two days and then a little to get it where it was like factory new looking. OH and we put it on with all brass hardware, even the mount to the rib was brass screws and nuts. I do not do pictures well on this site, but if you wish and are willing to let me get back to you as I can send me a PM and I may have a JPG. or two to send you. Hope this helps. Yours as always. R.E.A. III #80888
Reply With Quote
  #7
Old 04-24-2015, 08:30 PM
Breezy Breezy is offline

Join Date: Nov 2011
Location: Okeana, Ohio
Posts: 100
Default

John,

I have installed the G3X system in my previous RV-8 and will install again in the current -8 in construction.

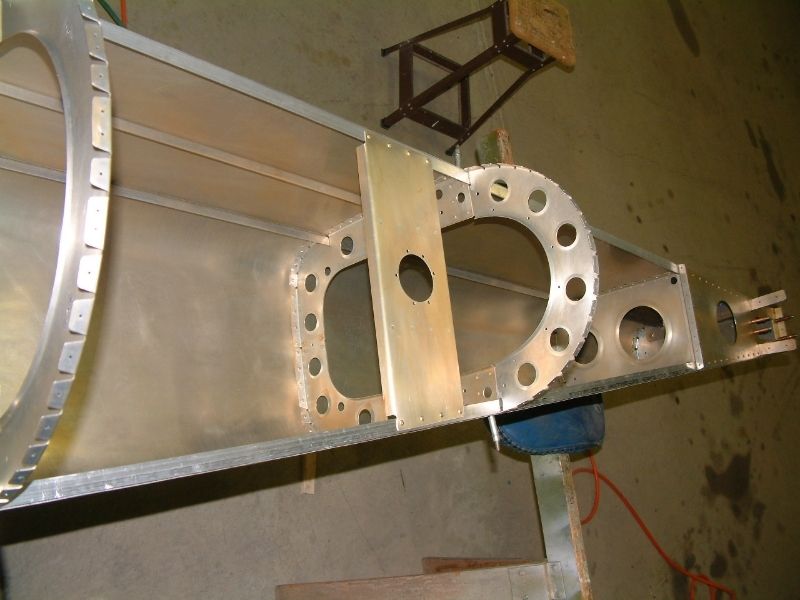

Here is a pic of the GMU platform I used on both projects.

It is located forward of the 809 bulkhead. This allows for access through the aft baggage area, and I felt came the closest to meeting the separation recommendations in the G3X install manual. This pic shows the platform riveted in place I have also used Brass machine screws to mount as well.
I found there was no way to meet the separation recommendations in the manual. There is simply not enough real-estate in an RV-8. This applies to other components as well, ie COMM/Xponder antenna separation, and remote transponder placement.
During post install setup there was minimal compass error, 1-2 degrees in any quadrant, with all lights and equipment powered.
Both COMMs worked very well with no RF background interference.
I have other pix available.
__________________
Breezy
First offense RV-8; N594WR; 80594 (time served)
ECI TITAN IOX 360 A1A9N, G3X

Repeat Offender: 83137 (Flying 10/16)
N837DW; Superior IO 360; G3X Touch.
Exceptional Aircraft Award, Sun N Fun 2017; Best Homebuilt, Mid-Eastern Regional Fly-in 2017.

One More Time: 140359, -14 in process, IO-390 (Maybe)


KHAO (Hogan Field)
Reply With Quote
  #8
Old 04-24-2015, 08:42 PM
Breezy Breezy is offline

Join Date: Nov 2011
Location: Okeana, Ohio
Posts: 100
Default

Here is an additional pic with better focus and expanded view:
__________________
Breezy
First offense RV-8; N594WR; 80594 (time served)
ECI TITAN IOX 360 A1A9N, G3X

Repeat Offender: 83137 (Flying 10/16)
N837DW; Superior IO 360; G3X Touch.
Exceptional Aircraft Award, Sun N Fun 2017; Best Homebuilt, Mid-Eastern Regional Fly-in 2017.

One More Time: 140359, -14 in process, IO-390 (Maybe)


KHAO (Hogan Field)
Reply With Quote
  #9
Old 04-25-2015, 02:16 AM
maus92 maus92 is offline

Join Date: Nov 2013
Location: Annapolis MD
Posts: 457
Default

Mine is mounted in the left wing tip, just forward of the conduit. I used Garmin's universal mounting bracket. I am still in the middle of my avionics / electrical system upgrade, so I cannot report its functionality, but the Dynon mag was mounted in the same wingtip, closer to the leading edge. I'll look for some photos and update this post.
